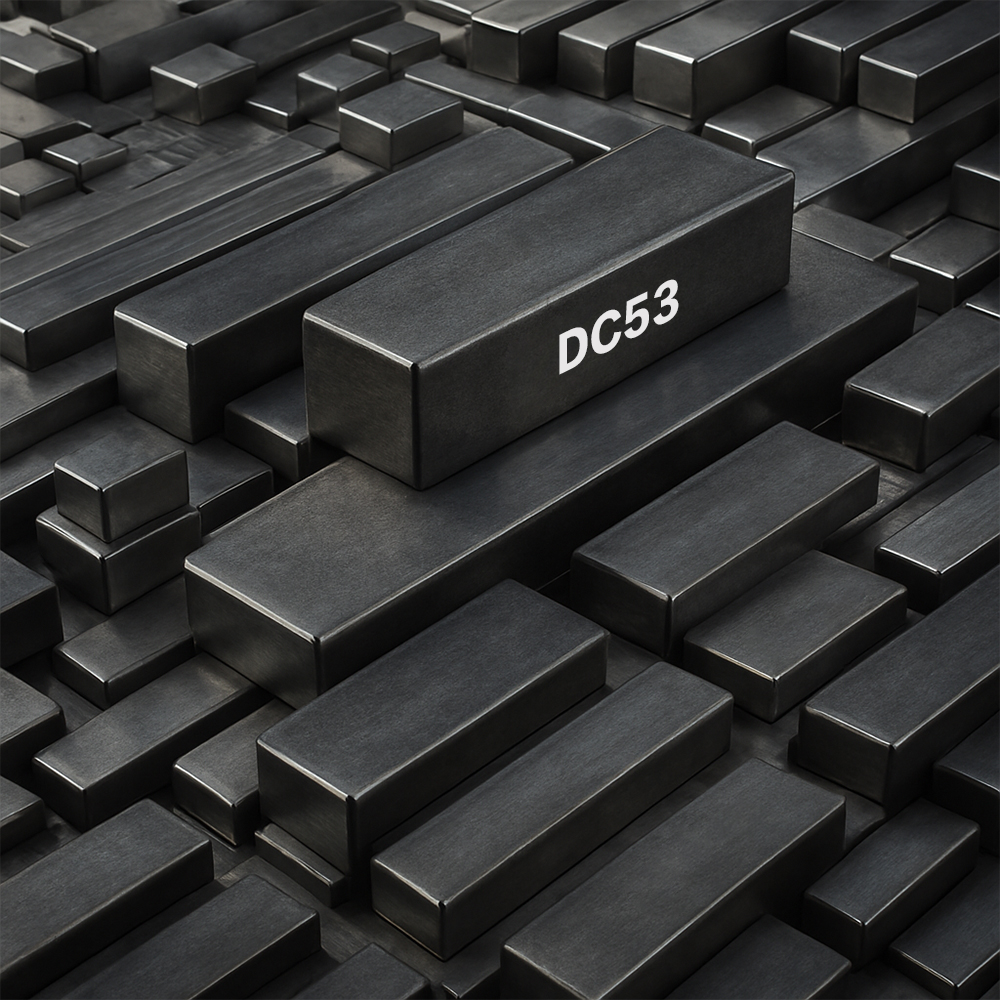

DC53 Material Detailed Information
DC53 is a high-performance cold work tool steel that is an improved version of SKD11 (D2). It offers superior toughness, wear resistance, and machinability, making it ideal for precision dies, cutting tools, and high-stress mold components. DC53 overcomes the weaknesses of SKD11, such as brittleness and chipping, by modifying its alloy composition and heat treatment properties.
DC53 is widely used in industries requiring high precision, durability, and superior mechanical performance.
Key Features
- Superior Toughness: Nearly double the toughness of SKD11, reducing the risk of cracking and chipping.
- Higher Hardness: Can reach 60-62 HRC after heat treatment, making it harder than SKD11.
- Excellent Wear Resistance: Due to its optimized alloy composition, DC53 maintains good wear resistance even at high hardness.
- Good Machinability: Easier to process and grind compared to SKD11.
- Improved Heat Treatment Performance: Less distortion after heat treatment, allowing for better dimensional stability.
- High-Temperature Tempering: Maintains high hardness after tempering at 500-600°C, which improves overall durability.
Chemical Composition
| Element | Composition (%) |
| Carbon (C) | 1.00 |
| Chromium (Cr) | 8.00 |
| Molybdenum (Mo) | 2.00 |
| Vanadium (V) | 0.30 |
| Silicon (Si) | 1.00 |
| Manganese (Mn) | 0.35 |
| Phosphorus (P) | ≤ 0.030 |
| Sulfur (S) | ≤ 0.030 |
Mechanical Properties
| Property | Value |
| Hardness (Annealed) | ≤ 255 HB |
| Hardness (Hardened & Tempered) | 60-62 HRC |
| Tensile Strength | 2500 MPa |
| Yield Strength | 2200 MPa |
| Elongation | ≤ 5% |
| Impact Strength | Higher than SKD11 |
DC53 vs. SKD11 vs. D2
| Property | DC53 | SKD11 | D2 (AISI) |
| Toughness | Superior | Medium | Medium |
| Wear Resistance | High | High | High |
| Hardness | 60-62 HRC | 58-62 HRC | 58-61 HRC |
| Machinability | Better than SKD11 | Moderate | Moderate |
| Heat Treatment Stability | Excellent | Moderate | Moderate |
Applications
DC53 is widely used in cold work tooling and die-making, including:
- Precision stamping dies
- Cutting tools (punches, trimming dies, shear blades)
- Cold forging dies
- Injection mold components
- Wear-resistant machine parts
- Thread rolling dies
- High-performance precision tools
Heat Treatment Process
Annealing
- Heat at 850–900°C
- Slowly cool to below 600°C in a furnace, then air cool
Hardening
- Heat to 1030–1050°C, hold for 30–60 minutes
- Quench in air, vacuum, or oil
Tempering
- Recommended at 520–530°C
- Double tempering improves toughness and wear resistance
- Results in hardness 60–62 HRC
Alternative Materials
- SKD11 (D2, 1.2379) – Standard cold work tool steel, good for general applications but lower toughness
- Vanadis 4 Extra – A high-performance powder metallurgy steel with even higher toughness and wear resistance
- ASP 23 – A high-speed powdered steel with superior wear resistance
Conclusion
DC53 is an advanced tool steel that outperforms SKD11 and D2 in terms of toughness, hardness, and machinability. It is ideal for applications that require high precision, durability, and excellent wear resistance.
