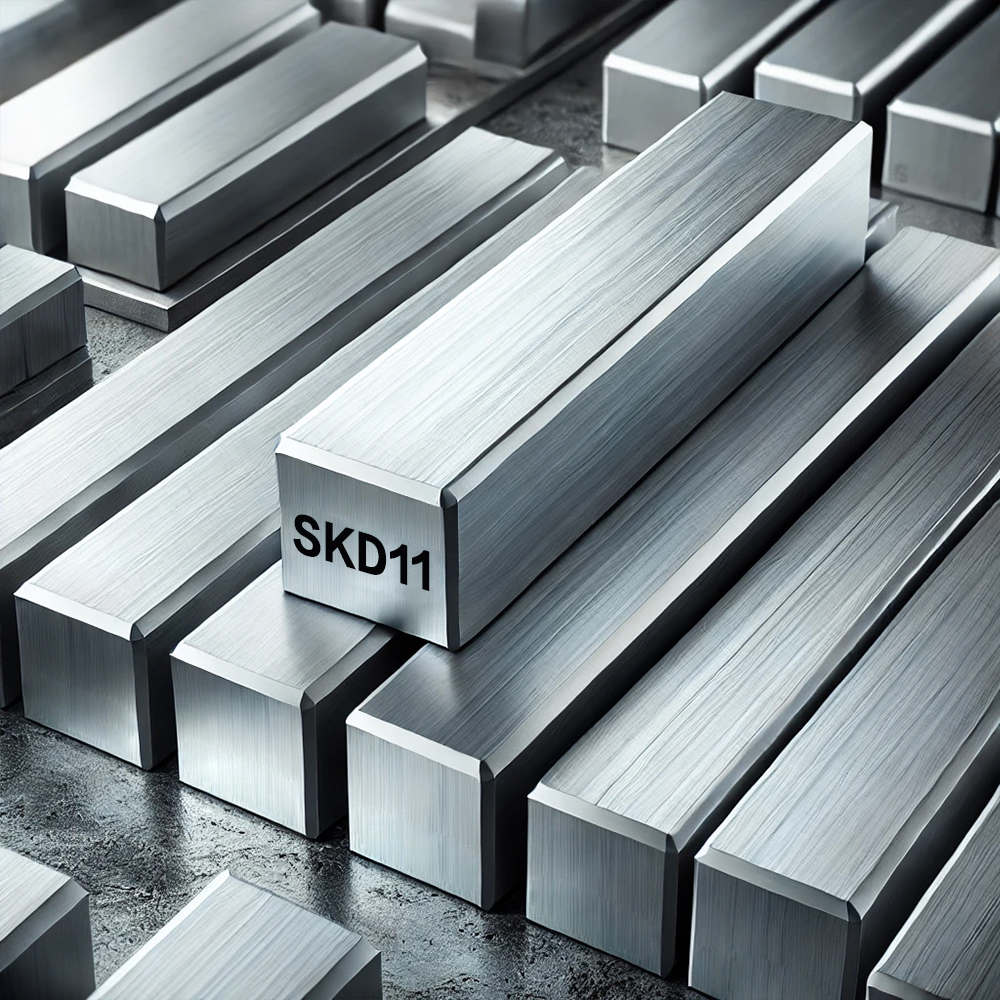

SKD11 Material Detailed Information
SKD11 is a high-carbon, high-chromium alloy tool steel that belongs to the cold work die steel category. It is widely used for making precision dies and tools due to its excellent wear resistance, toughness, and hardenability. SKD11 is equivalent to D2 (AISI), X153CrMoV12 (DIN), and 1.2379 (Werkstoff) in other international standards.
Key Features
- High Wear Resistance: Due to the high carbon and chromium content, SKD11 has excellent wear resistance.
- Good Toughness: Compared to traditional D2 steel, SKD11 has improved toughness, reducing the risk of chipping.
- Excellent Hardness: Can achieve up to 62 HRC after heat treatment.
- Good Machinability: SKD11 is easier to process in the annealed condition but requires careful machining after hardening.
- Dimensional Stability: Maintains stable dimensions during heat treatment.
Chemical Composition
| Element | Composition (%) |
| Carbon (C) | 1.40 – 1.60 |
| Chromium (Cr) | 11.00 – 13.00 |
| Molybdenum (Mo) | 0.80 – 1.20 |
| Vanadium (V) | 0.20 – 0.50 |
| Silicon (Si) | ≤ 0.40 |
| Manganese (Mn) | ≤ 0.60 |
| Phosphorus (P) | ≤ 0.030 |
| Sulfur (S) | ≤ 0.030 |
Mechanical Properties
| Property | Value |
| Hardness (Annealed) | ≤ 255 HB |
| Hardness (Hardened & Tempered) | 58-62 HRC |
| Tensile Strength | 2500 MPa |
| Yield Strength | 2200 MPa |
| Elongation | ≤ 5% |
| Impact Strength | High toughness after tempering |
SKD11 vs. D2 vs. DC53
| Property | SKD11 | D2 (AISI) | DC53 |
| Toughness | Higher | Medium | Superior |
| Wear Resistance | Excellent | Excellent | Slightly lower than SKD11 |
| Hardness | 58-62 HRC | 58-61 HRC | 60-62 HRC |
| Machinability | Moderate | Moderate | Better than SKD11 |
Applications
SKD11 is widely used in the tool and die industry, including:
- Cold work dies (stamping, punching, shearing dies)
- Precision mold components
- Slitting and trimming knives
- Thread rolling dies
- Wear-resistant machine parts
- Plastic mold components requiring high wear resistance
Heat Treatment Process
Annealing
- Heat at 850–900°C → Slow cooling in the furnace to below 600°C → Air cooling
Hardening
- Heat to 1020–1050°C, hold for proper soaking time → Quench in oil or air
Tempering
- Heat at 150–250°C for 2 hours → Air cooling (to adjust hardness and toughness)
Alternative Materials
- DC53 (Modified SKD11 with higher toughness and better machinability)
- D2 Steel (AISI equivalent with similar characteristics)
- 1.2379 (European equivalent with the same composition)
Conclusion
SKD11 is an excellent cold work tool steel known for its wear resistance, toughness, and hardness. It is widely used in precision stamping dies, cutting tools, and high-performance mold components. If better toughness and machinability are required, DC53 or modified versions of SKD11 can be considered.
