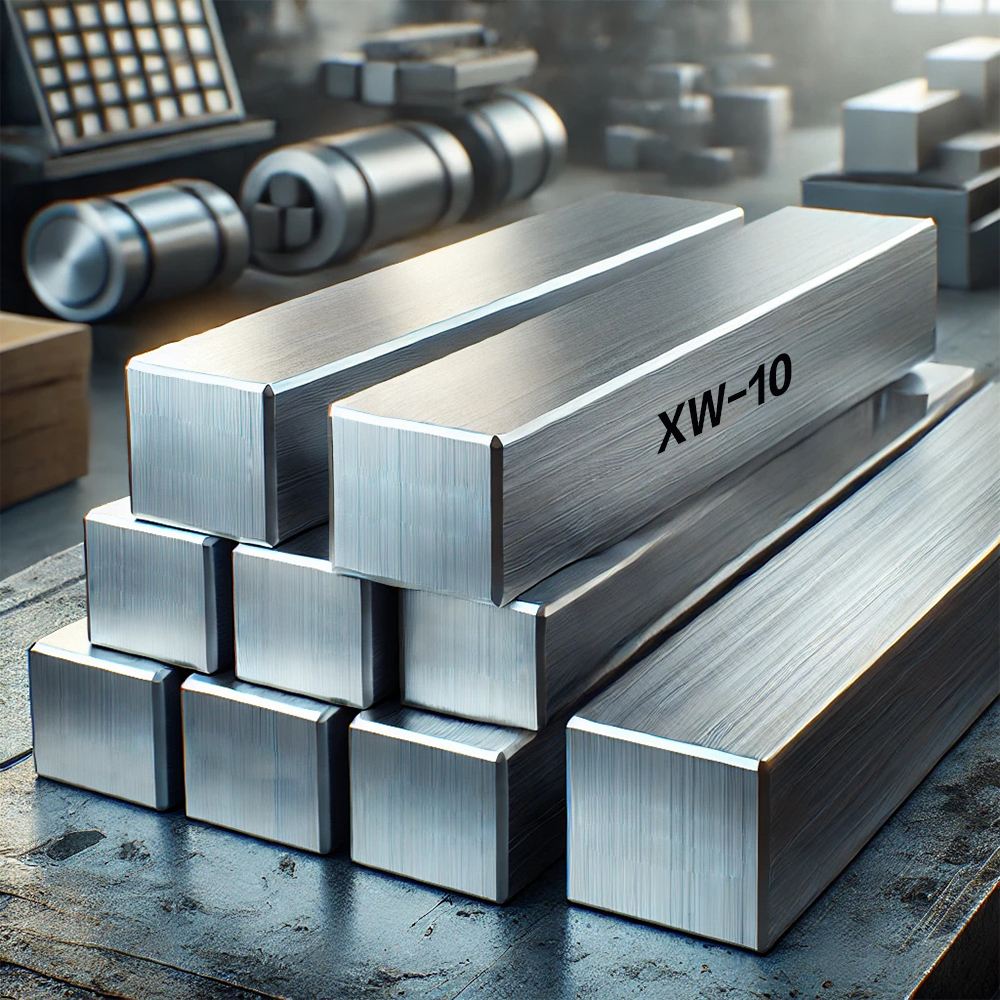

XW-10 Material Detailed Information
XW-10 is a high-carbon, high-chromium cold work tool steel, developed for applications requiring high wear resistance, good toughness, and excellent hardness. It is commonly compared to D2 (AISI) and 1.2379 (DIN) but features improved toughness and machinability.
This steel is designed for blanking, stamping, forming, and shearing applications where long tool life and resistance to abrasive wear are critical.
Key Features
Superior Wear Resistance
- High chromium and vanadium content create a high-hardness matrix that resists wear.
- Suitable for blanking, stamping, and forming tools that undergo heavy use.
High Hardness & Edge Retention
- After heat treatment, XW-10 reaches 58-62 HRC, providing long tool life and cutting performance.
Good Machinability Compared to D2
- Improved microstructure refinement offers better machinability than traditional D2 steels.
High Compressive Strength
- Withstands high-pressure loads without deformation, making it ideal for punches and dies.
Moderate Corrosion Resistance
- Chromium content provides some corrosion resistance, but it is not a stainless steel.
- Suitable for dry working environments or lightly lubricated conditions.
Chemical Composition
| Element | Composition (%) |
| Carbon (C) | 1.55–1.65 |
| Silicon (Si) | 0.20–0.60 |
| Manganese (Mn) | 0.20–0.60 |
| Chromium (Cr) | 11.00–12.00 |
| Molybdenum (Mo) | 0.70–1.00 |
| Vanadium (V) | 0.70–1.00 |
- High Chromium Content (11-12%) → Provides excellent wear resistance and moderate corrosion resistance.
- Molybdenum & Vanadium Additions → Enhance toughness, wear resistance, and secondary hardening capability.
- High Carbon Content (1.55-1.65%) → Ensures high hardness and edge retention.
Mechanical Properties
| Property | Value |
| Hardness (Annealed) | ~250 HB |
| Hardness (After Heat Treatment) | 58–62 HRC |
| Tensile Strength | ~2,000 MPa |
| Yield Strength | ~1,600 MPa |
| Wear Resistance | Excellent |
| Compressive Strength | High |
| Machinability | Moderate |
| Toughness | Good (Better than D2) |
- Very high wear resistance → Ideal for abrasive environments.
- High compressive strength → Suitable for high-load applications.
- Better toughness than standard D2 → Reduces risk of chipping and cracking.
XW-10 vs. Other Cold Work Tool Steels
| Property | XW-10 | D2 (1.2379) | O1 (1.2510) | A2 |
| Hardness (HRC) | 58-62 | 58-62 | 58-60 | 57-62 |
| Wear Resistance | Excellent | Excellent | Moderate | Good |
| Toughness | Good | Moderate | Very High | High |
| Machinability | Better than D2 | Difficult | Good | Moderate |
| Compressive Strength | Very High | High | Moderate | High |
| Applications | Punches, Dies, Blades | Wear-resistant tooling | General-purpose tooling | Shock-resistant tooling |
Why Choose XW-10?
- Better toughness and machinability than D2.
- High hardness and wear resistance, ensuring longer tool life.
- Ideal for high-load applications where edge retention is key.
Applications
XW-10 is used in cold work tooling applications where high wear resistance, strength, and toughness are required.
PCutting & Stamping Tools
- Punches, dies, and blanking tools for sheet metal processing.
- Forming tools requiring high edge retention.
Shear Blades & Slitting Knives
- Metal cutting knives and trimming blades for high-wear applications.
Cold Forging Dies
- Cold forming and extrusion dies for shaping metal components.
Plastic & Rubber Molding
Injection molds and compression molds requiring wear resistance.
Heat Treatment Process
Annealing
- Heat to 850–900°C, hold, then cool slowly in a furnace.
- Ensures softness for machining.
Hardening
- Preheat at 650–750°C, then heat to 1,000–1,050°C for hardening.
- Oil, air, or vacuum quenching is recommended.
Tempering
- Temper at 520–560°C for 2-3 cycles to achieve a final hardness of 58–62 HRC.
Cryogenic Treatment (Optional)
- Can be used to enhance wear resistance and stability.
Alternative Materials
- D2 (1.2379): Similar high-wear resistance, but more brittle.
- A2 (1.2363): More shock-resistant, but lower wear resistance.
- O1 (1.2510): Better machinability, but lower hardness and wear resistance.
- Vanadis 10 (PM Steel): A powder metallurgy alternative with higher toughness.
Conclusion
XW-10 is a high-performance cold work tool steel offering excellent wear resistance, high hardness, and improved toughness compared to D2. It is ideal for punches, dies, blades, and cold work tooling that require superior edge retention and durability.
Best Choice for: High-wear stamping tools, blanking dies, and metal cutting applications.
Why Choose XW-10? Better toughness than D2, high wear resistance, and superior hardness retention.
