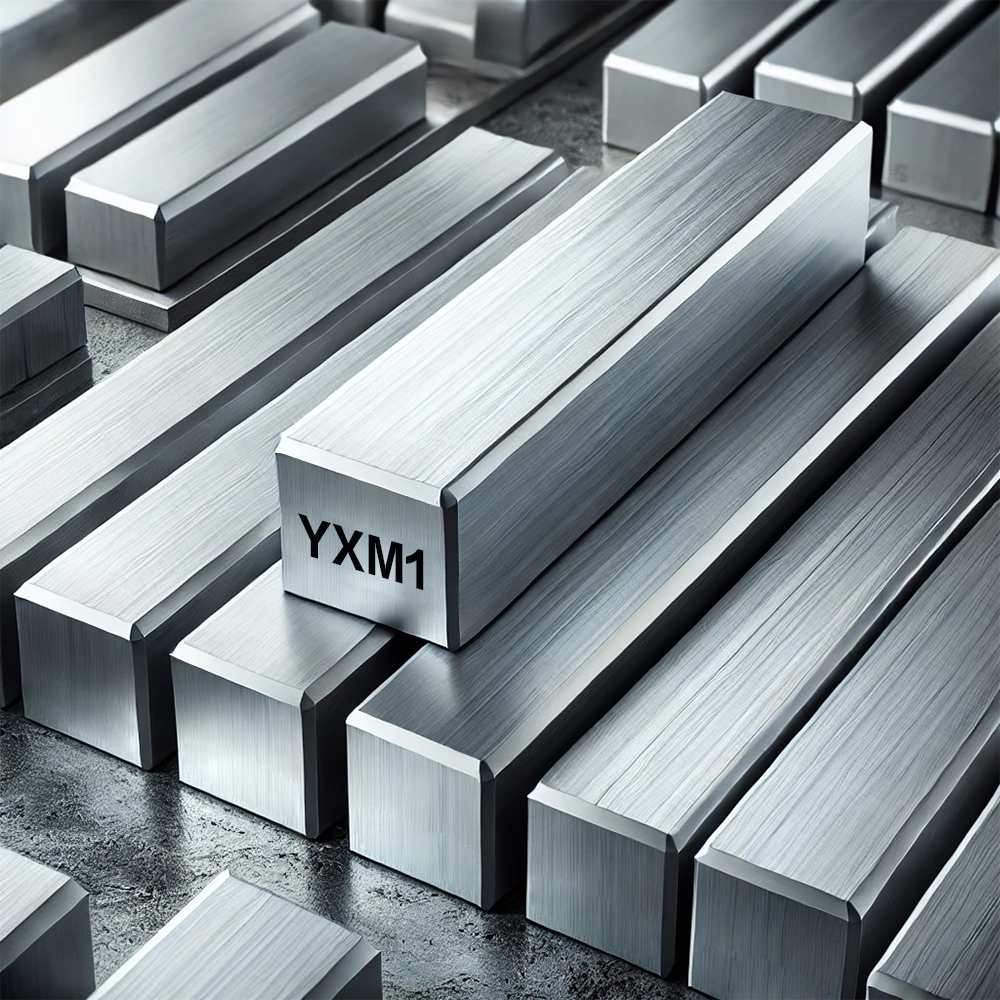

YXM1 Material Detailed Information
YXM1 is a high-performance tool steel specifically developed for cold work tooling applications. It is a high-alloy steel that is extremely wear-resistant and designed for use in cutting tools, dies, and molds subjected to abrasive wear and high mechanical stress. YXM1 is a high-speed steel (HSS) material, known for its ability to maintain high hardness even at elevated temperatures, making it suitable for high-performance tooling in metalworking and plastic molding industries.
This steel offers excellent toughness and wear resistance, and it is particularly effective in applications where high impact resistance is needed in combination with abrasion resistance.
Key Features
- Excellent Wear Resistance: YXM1 is specifically engineered to provide outstanding wear resistance, making it highly suitable for cutting tools and forming dies that need to withstand abrasive conditions.
- High Hardness: After heat treatment, it achieves a hardness of 63-66 HRC, providing excellent cutting capabilities and performance in abrasive environments.
- Good Toughness: Despite its high hardness, YXM1 offers moderate toughness, which reduces the likelihood of cracking under high impact or mechanical stress.
- High-Temperature Performance: The presence of tungsten and molybdenum allows YXM1 to maintain hardness and abrasion resistance at high temperatures, making it suitable for high-speed applications.
- High Impact Resistance: Due to its excellent toughness and shock resistance, YXM1 is well-suited for tools that undergo repeated impact forces.
- Good Machinability: YXM1 maintains good machinability in its annealed state, enabling efficient manufacturing of tooling components.
Chemical Composition
| Element | Composition (%) |
| Carbon (C) | 0.90 – 1.05 |
| Silicon (Si) | 0.20 – 0.40 |
| Manganese (Mn) | 0.30 – 0.60 |
| Chromium (Cr) | 4.50 – 5.50 |
| Molybdenum (Mo) | 5.00 – 6.00 |
| Vanadium (V) | 1.80 – 2.20 |
| Tungsten (W) | 6.00 – 7.00 |
| Phosphorus (P) | ≤ 0.030 |
| Sulfur (S) | ≤ 0.030 |
Note: The high content of tungsten and molybdenum in YXM1 improves its high-temperature performance, wear resistance, and ability to maintain hardness during high-speed cutting.
Mechanical Properties
| Property | Value |
| Hardness (Annealed) | ≤ 250 HB |
| Hardness (Hardened & Tempered) | 63 – 66 HRC |
| Tensile Strength | ~1,400 – 1,500 MPa |
| Yield Strength | ~1,200 MPa |
| Elongation | 4 – 7% |
| Impact Toughness | Moderate |
YXM1 vs. M2 vs. H13 (AISI)
| Property | YXM1 | M2 (AISI) | H13 (AISI) |
| Hardness (Tempered) | 63-66 HRC | 62-65 HRC | 48-52 HRC |
| Wear Resistance | Excellent | Excellent | Good |
| Toughness | Moderate | Good | Excellent |
| High-Temperature Performance | Excellent | Good | Excellent |
| Machinability | Good | Moderate | Moderate |
| Applications | Cutting tools, dies | Cutting tools, drills | Hot work tools, forging dies |
Applications
YXM1 is used in various cold work tooling applications, particularly in industries that require cutting tools and forming dies with high resistance to wear, impact, and high temperatures:
- Cutting tools, such as saws, drills, and end mills, where abrasion resistance and high hardness are essential.
- Cold forming dies for metalworking and plastic molding applications.
- Blanks and punches used in stamping and forging operations.
- Extrusion dies and molds in plastic injection molding.
- Tooling in the automotive and aerospace industries that requires both high wear resistance and impact resistance.
Heat Treatment Process
Annealing
- Heat to 800–850°C, then cool slowly in a furnace to relieve internal stresses and soften the material.
Hardening
- Heat to 1,050–1,100°C and soak for the appropriate time, followed by oil or air quenching to achieve high hardness.
Tempering
- Temper to 500–550°C to achieve the desired hardness range of 63-66 HRC for optimal performance in cutting and forming applications.
Surface Treatment
- Surface treatments like nitriding or PVD coating can be applied to enhance wear resistance and surface hardness for highly demanding applications.
Alternative Materials
- M2 (AISI): A high-speed steel with good wear resistance and high hardness, but with lower impact resistance compared to YXM1.
- H13 (AISI): A hot work tool steel with excellent toughness and high-temperature performance, ideal for hot forming applications but less suited for high-speed cutting or abrasive wear.
- D2 (AISI): A high-carbon, high-chromium steel with excellent wear resistance but relatively low toughness compared to YXM1.
Conclusion
YXM1 is a high-performance tool steel with outstanding wear resistance, high hardness, and moderate toughness, making it ideal for cutting tools and cold forming dies exposed to abrasive conditions and high mechanical stress. Its excellent high-temperature performance and shock resistance make it suitable for high-speed applications, especially in industries like automotive, aerospace, and metalworking.
